How to create rainbow effect with Fireworks

How to Draw a Rainbow

How to create rainbow effect with Fireworks

In this tutorial you are going to learn how to draw a rainbow using doughnut auto shapes properties in Fireworks. Doughnut draws object that appear as filled rings. Using control points, you can adjust the inner perimeter or split the shape into pieces. The image below shows how we have created rainbow effect.

Rainbow effect

Prerequisite Knowledge

This tutorial teaches you how to create a rainbow effect using Fireworks and thus assumes you are familiar with some design software, even if you are new to Adobe Fireworks. However be assured that our detailed instructions can be followed by even a total novice.

You Are Here ::: Home >> Free Tutorials >> Fireworks Tutorials >> Rainbow Effect

Rainbow effect with Adobe Fireworks CS3 or below

In Doughnut autoshape you can add as many sections as you want using control points. For each new section, Fireworks adds a control point for resizing or splitting the new section. Follow the steps given below:

Color Palette - Rainbow

#660066#0B4491#66CCFF#669900#F7CA0D#EE5D0A#B90909
  • Step 1: Open Fireworks and create a new document of size 500x500 pixels.
  • Step 2: Go to Window >> Auto shapes Properties insert Doughnut doughnut shape. Adjust the Inner Radius to set the width of the doughnut and adjust the Alt/Opt-drag to segment to form a semicircle. See the illustration below that will show how to draw a semicircle:

    Semicircle

  • Step 3: We have set the Outer Radius as 270 and Inner Radius as 250 as shown below. First set the Outer radius and then set the Inner radius. You can increase or decrease the size of the doughnut using Scale Tool scale tool. Select the doughnut and set the Fill Color as #660066 (Violet) and Stroke Color as none.

    settings

  • Step 4: Now copy and paste the Doughnut make the Fill color as #0B4491 (Indigo) and Stroke color as none. Then, place the doughnut (Indigo) above the previous doughnut (Violet) and set the Outer Radius as 290 and Inner Radius as 270. The image below shows how we have placed the doughnuts.

    Doughnuts

  • Step 5: Repeat the above step for other colors. Set the colors and radius as listed below:

    Blue – Color: #66CCFF; Outer Radius as 310 and Inner Radius as 290.

    Green – Color: #669900; Outer Radius as 330 and Inner Radius as 310.

    Yellow – Color:#F7CA0D; Outer Radius as 350 and Inner Radius as 330.

    Orange – Color: #EE5D0A; Outer Radius as 370 and Inner Radius as 350.

    Red – Color: #B90909; Outer Radius as 390 and Inner Radius as 370.

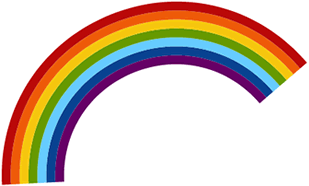

    See the illustration below that will show how the colors are placed:

    Rainbow

  • Step 6: Use the cloud as it is, if want to use the cloud smoother give feather. Draw a circle using Ellipse Tool ellipse tool set the Fill color as #FFFFFF and Stroke color as none. To apply Feather Effect, click on Edge from Properties panel, choose Feather and set the feather value to 30.
  • Step 7: Now we are going to Fade the rainbow. For this we need to place the circle on the left side of the rainbow and then copy and paste the circle on the right side.  The faded rainbow will look as below:

    Rainbow

  • Step 8: Click on each color of the rainbow and apply feather effect. To apply Feather Effect, click on Edge from Properties Inspector, choose Feather and set the feather value to 9. See the illustration below that will show to feather the rainbow:

    Rainbow

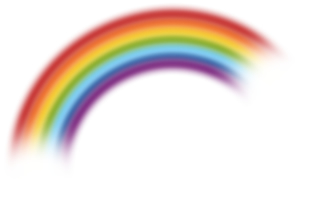

  • See the image below that will show how we have placed the rainbow effect.

    Rainbow effect

Software Required

Adobe Fireworks (Macromedia Fireworks prior to version 8). Please check out the compatible versions listed in the box below. Since this tutorial covers an inbuilt core function of fireworks to create rainbow effect, using mostly any version of these software should be fine. If you are using the CS4 version of these software please read Rainbow Effect with Adobe Fireworks CS5.

Compatible Versions of Adobe Fireworks for this Tutorial

Fireworks CS3 Fireworks 4-8 | Fireworks CS3
Adobe Fireworks CS4 & above users: If you are using Fireworks CS4+ please note that some features, steps and screenshot images may differ for the above tutorial. Please read the CS4+ version of this free web design tutorial - Rainbow Effect with Adobe Fireworks CS4+.
Recommended Version: Fireworks CS6
